Product Description

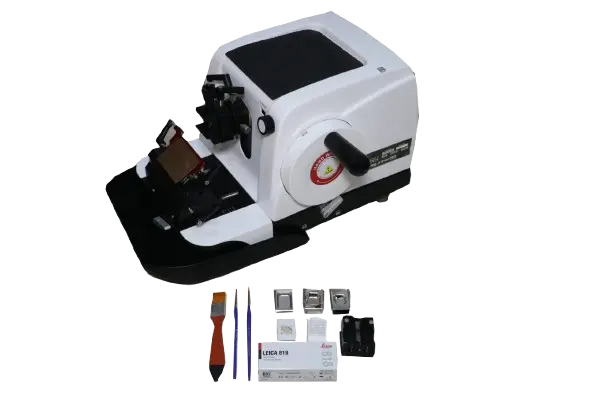

The Advance Rotary Microtome (CUT-24) is a high-precision histopathology instrument engineered for producing thin, consistent, and high-quality tissue sections for diagnostic, research, and laboratory applications.
Key Features
- High-precision specimen feed mechanism for accurate sectioning.
- Cross roller guideways ensure smooth and precise movement.
- Robust and stable base plate for maximum stability.
- Handwheel lock at every position for enhanced operator safety.
- User-friendly ergonomic design for comfortable operation.
- Smooth-running handwheel reduces operator fatigue.
- Compatible with both low & high profile blades.
- Adjustable knife angle for versatile cutting applications.
Technical Specifications
- Section-Mode Manual.
- Minimum setting value: 1 µm
- Section Thickness Range: 0.5 µm – 60 µm
- Trimming thickness range: 1 µm to 60 µm
- Specimen feed: Approx 24 mm ± 1 mm
- Specimen size: Large standard clamp – 50 × 50 × 30 mm or super standard clamp – 68 × 48 × 15 mm
- Specimen orientation: Horizontal 8°, Vertical 8°, Z 360°
- Vertical Stroke: 60 mm ± 1 mm
- Object/Horizontal feed: 30 mm
- Storage temperature range: −20°C up to +50°C
- Operation condition temperature: +5°C to +40°C (indoor only)
- Nominal Voltage: 220/240V, 50–60 Hz, A/C ±10%
